Trucktrak

Underground Mobile Machinery Load and Haul Monitoring System
What Trucktrak delivers

Real-time insights for underground control

From live fleet visibility to production reports, Trucktrak converts raw machine data into clear, actionable intelligence across three operational priorities.

Compatible with all underground mining methods - whether tunneling, room & pillar, or hauling out of a portal.

Visibility
Performance
Control
  • Trucktrak live underground fleet location dashboard showing LHD and dump truck positions and shift production

    Live Underground Visibility Across Your Entire Fleet

    Trucktrak eliminates operational blind spots underground by delivering real-time insight into every LHD and dump truck on site, where it is, what it's producing, and how it's performing, every minute of every shift.

    • LHD and dump truck locations, status, and shift production • Ore flow from loading area to tipping destination • Drill-down access to hourly and per-machine production data • Historical data for investigation and compliance review

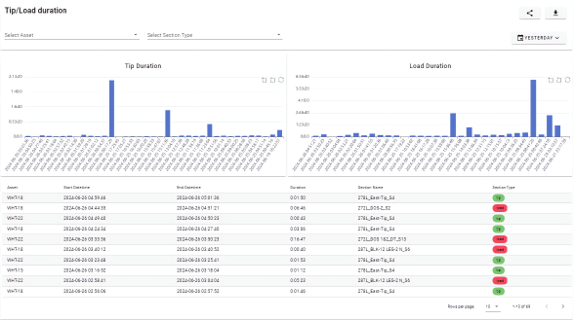

  • Trucktrak production metrics dashboard showing fleet loading, hauling and tipping activity with KPIs

    Production Metrics and Fleet Productivity

    Identify inefficiencies and eliminate bottlenecks with continuous monitoring of your fleet's loading, hauling, and tipping activity, presented in clear graphical and tabular summaries.

    • Fleet availability, utilisation, and key performance indicators • Real-time and aggregated production metrics by loading area, tip, and machine • Cycle times, loading durations, and tipping durations • Validated loading and tipping events with automated data offload
  • Trucktrak control dashboard showing actual vs plan compliance, dispatch interface and short-interval control

    Close the Gap Between Plan and Actual

    Integrate mine planning data to enable in-shift compliance monitoring, short-interval control, and dispatch-driven optimisation, with actuals available continuously, not just after the survey.

    • Mine plan integration for real-time compliance monitoring • Operator dispatching and material selection interfaces • Actual vs call dashboard and reports • Automated report scheduling, push notifications, and payload linking

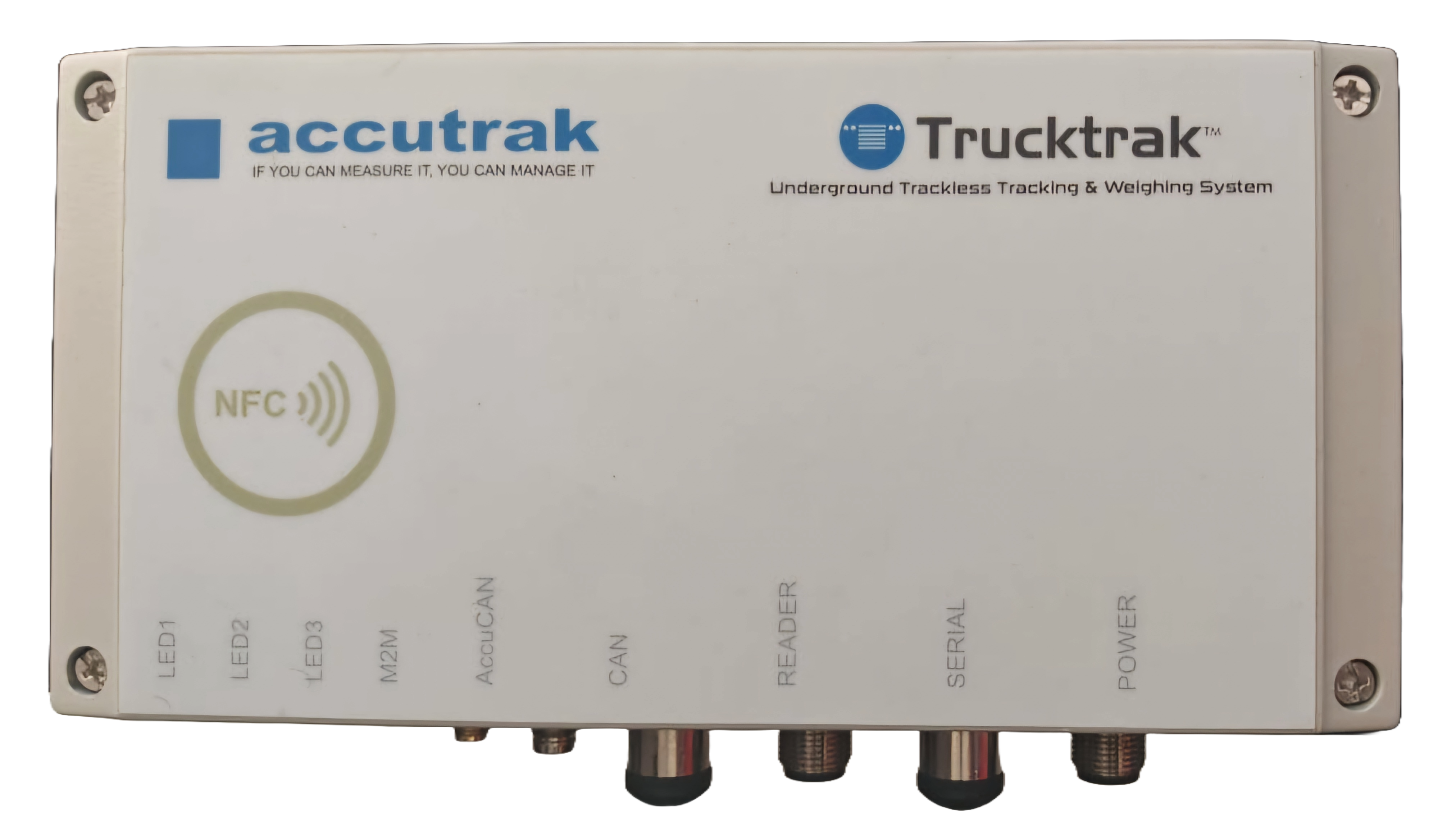

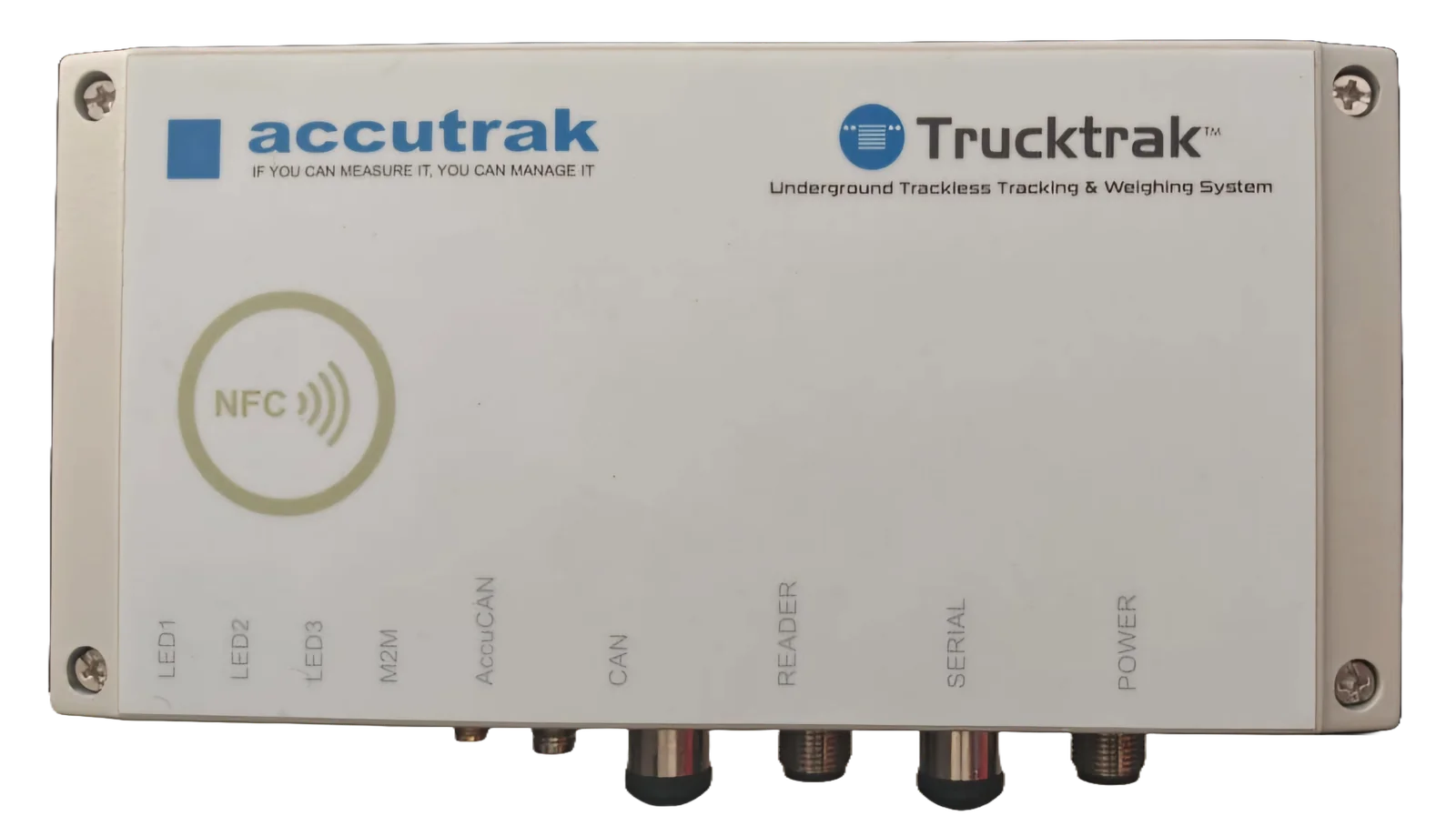

Trucktrak Data Device - rugged in-cabin unit for underground LHD and dump truck monitoring

OEM Hardware for Demanding Underground Environments

Each LHD and dump truck is equipped with a rugged in-cabin Trucktrak Data Device (TDD) that handles all onboard processing, event validation, and communications. Integrated antennas provide reliable GPS and mesh network connectivity underground. The system is designed to operate across all underground mining methods - tunneling, room & pillar, and portal extraction.


In areas without wireless infrastructure, Trucktrak automatically creates a vehicle-to-vehicle mesh network, ensuring reliable data transfer without dependence on Wi-Fi infrastructure. Advanced algorithms determine which vehicles are most likely to reach a surface connectivity zone, enabling intelligent data handoff and rapid synchronisation.


Additional sensors validate production events: onboard sensors detect and confirm loading and tipping events through vibration and inclination measurement. Operator ID, material selection, and dispatch interfaces provide additional control input directly from the cab. The system is fully developed in-house, with advanced diagnostics and remote support capabilities.

Purpose-Built Dashboards

All data is processed in real time and structured into a central production database, accessible to all stakeholders through a suite of focused dashboards:


Live Locations - Real-time machine position, status, and shift performance with drill-down access to hourly and per-machine production. Supports mine plan API integration for compliance monitoring.

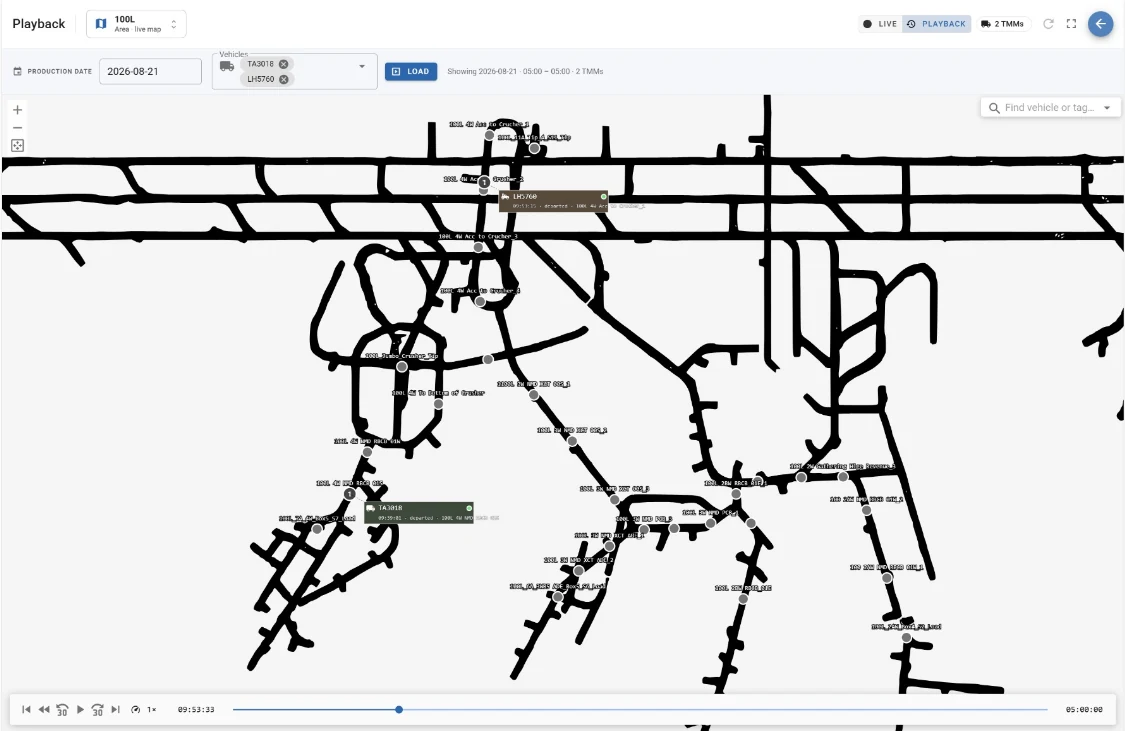

Trip Playback - Review historical machine movements for analysis, compliance, and incident investigation.
Fleet Overview - Fleet availability, key performance indicators, and individual machine status in a single view.
Production Summary - Load and haul data by loading area, tipping area, section, level, or machine - available at all times.
Ore Flow - Tracks material movement from source to destination underground, with full visibility by material type.
Productivity Insights - Cycle times, loading durations, and tipping durations presented in clear graphical and tabular summaries.

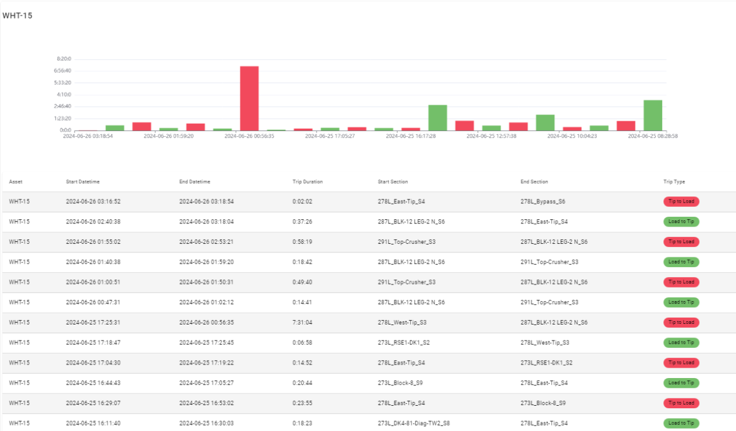

Trucktrak purpose-built dashboards showing underground production summary, ore flow and fleet overview
Trucktrak telemetry and reporting interface showing utilisation, tracking and production reports

Telemetry, Reports, and Scheduling

Trucktrak collects telemetry alongside production and tracking data. AccuCAN, our proprietary device, extends onboard data capture to operator identification, fuel, and strain sensors. The reporting suite covers three categories:


Utilisation reports - Fleet availability, engine hours, trip counts, and travel summaries.
Tracking reports - Per-vehicle timelines and movement summaries.
Production reports - Detailed load data, hourly production, tally sheets, and call vs actual comparisons.

Automated report scheduling and push notifications are available through the self-service platform.

Optional Augmentations

Extend your core Trucktrak solution

Purpose-built add-on modules that connect Trucktrak to wider operational systems, workflows, and data sources.

Mine Planning Integration

Connect Trucktrak to your mine planning system via API to enable real-time compliance monitoring. Track actual underground production against plan targets in-shift, generate call vs actual reports, and close the gap between scheduled and delivered tonnage.

Dispatch

Operator dispatching, material selection, and in-cab dispatch interfaces give your control room real-time authority over machine assignments and loading destinations underground, enabling short-interval control and reducing idle time.

Digital Forms & Workflow Service

Replace paper-based processes with structured digital forms and automated workflows. Capture pre-shift inspections, defect reports, and compliance checklists directly from the cab or control room, with automatic routing to relevant personnel and escalation paths.

TMM Payloads

Link OEM or aftermarket payload measurement systems directly into Trucktrak production data. Accurate per-load tonnage is automatically associated with trip records, enabling precise production reporting and eliminating manual weighbridge reconciliation.

RTLS - Real-Time Location System

The positioning beacons installed throughout your operation to locate machines can be upgraded to PoE RTLS anchors, significantly reducing location update latency and improving tracking accuracy across your underground operation.

Trucktrak - delivering visibility, production, and control for underground mining operations.
